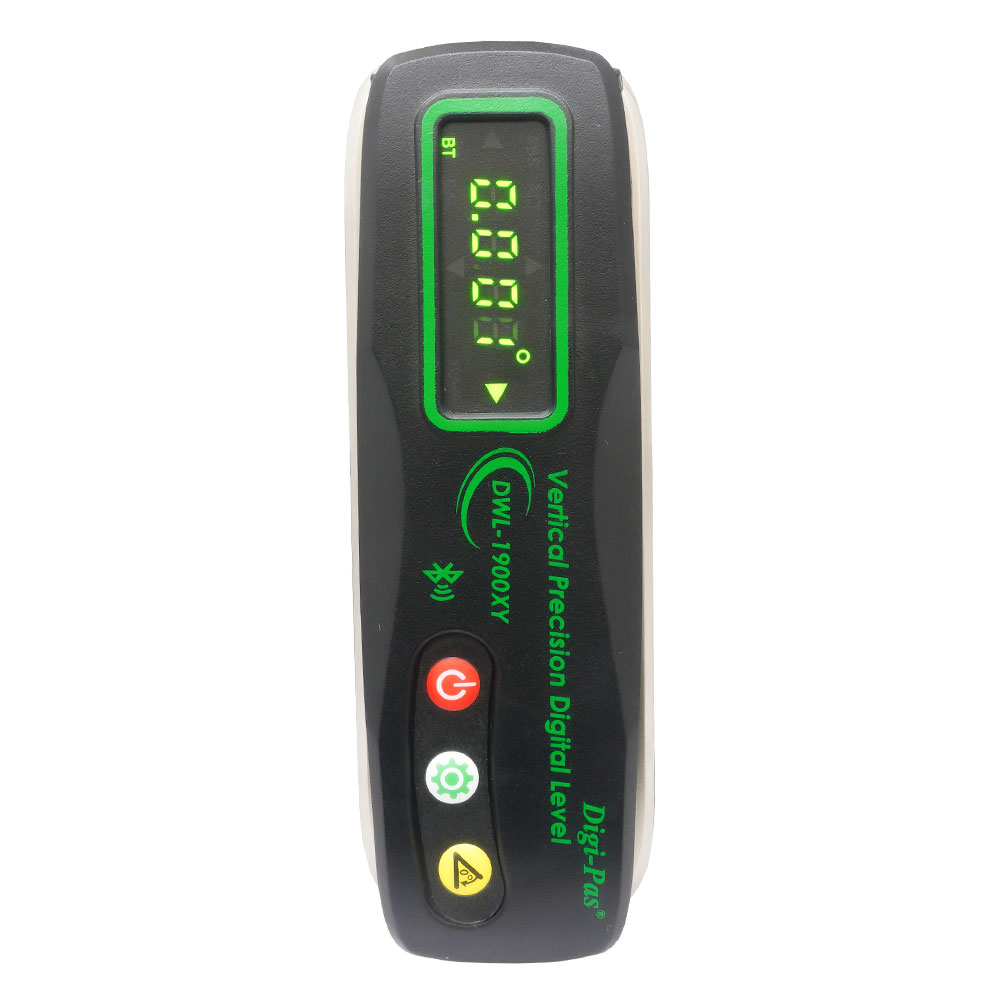

Vertical & Perpendicularity Alignment
One Digi-Pas® 2-axis Smart Vertical Precision Level effectively REPLACES 2 OLD-FASHIONED Frame spirit VIAL levels.

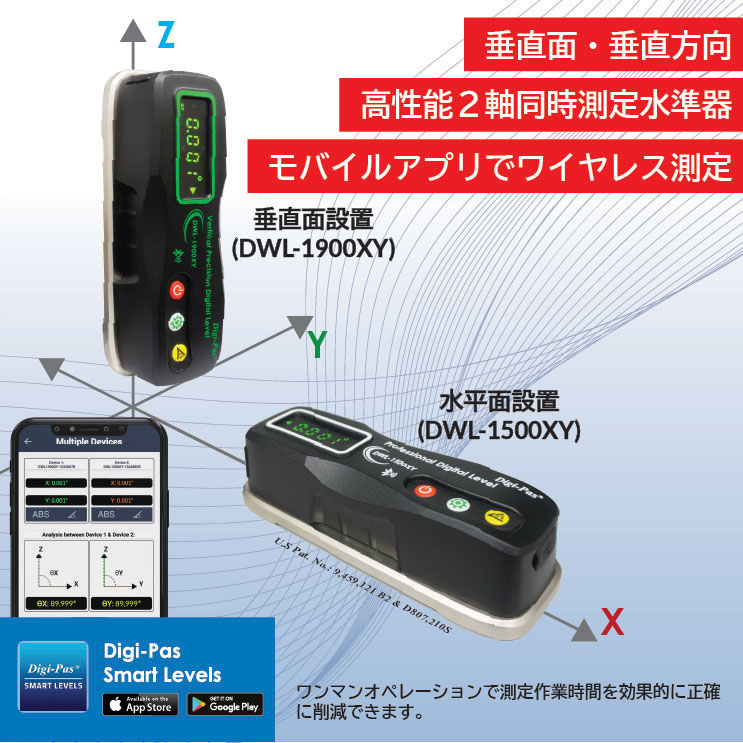

This wireless high precision level is AFFORDABLE, designed espe- cially for industrial users & professionals, and allow SIMULTANE- OUS & REAL-TIME reading of VERTICAL X & Y axis with smart- phones, cutting down machine installation & setup time by more than HALF.
■Specifications
| Dimensions (L × W × H) | 149 × 51 × 40mm (Approx. 6 × 2 × 1.5in) |
|---|---|
| Measuring Range (Dual Axis) | 90.000° to ±5.000° |
| Resolution | 1μm/50mm, 3μm/150mm, 5μm/300mm, 17μm/1000mm |
| Accuracy | ±6μm/150mm or ±35μm/1,000mm (at 90.000° ±0.500°) ±12μm/150mm or ±70μm/1,000mm (at other angles) |
| Repeatability | 0.001° (18μm/m or 0.002in/ft) |
| Measurement Speed | ≤5 sec. |
| Power Supply | 2 × AA batteries (not included) / Micro USB port |
| Bluetooth Range | Approx. 15m (50ft) |
| Material | PC ABS / Zinc Alloy |
* Product specifications and appearance are subject to change without prior notice for quality improvement.
