Examples of use

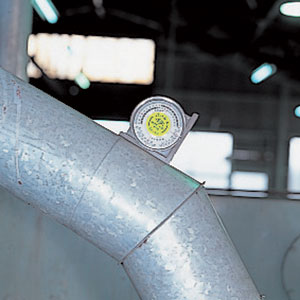

For duct construction and plumbing works

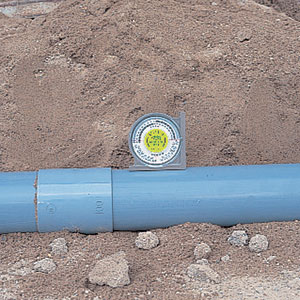

For drainage works

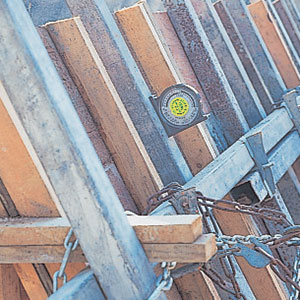

For form works

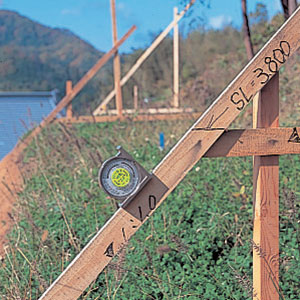

For measuring slope gradient
Ideal for work with slopes such as plumbing, drainage works and steel frame structures etc.
Material
- ABS resin

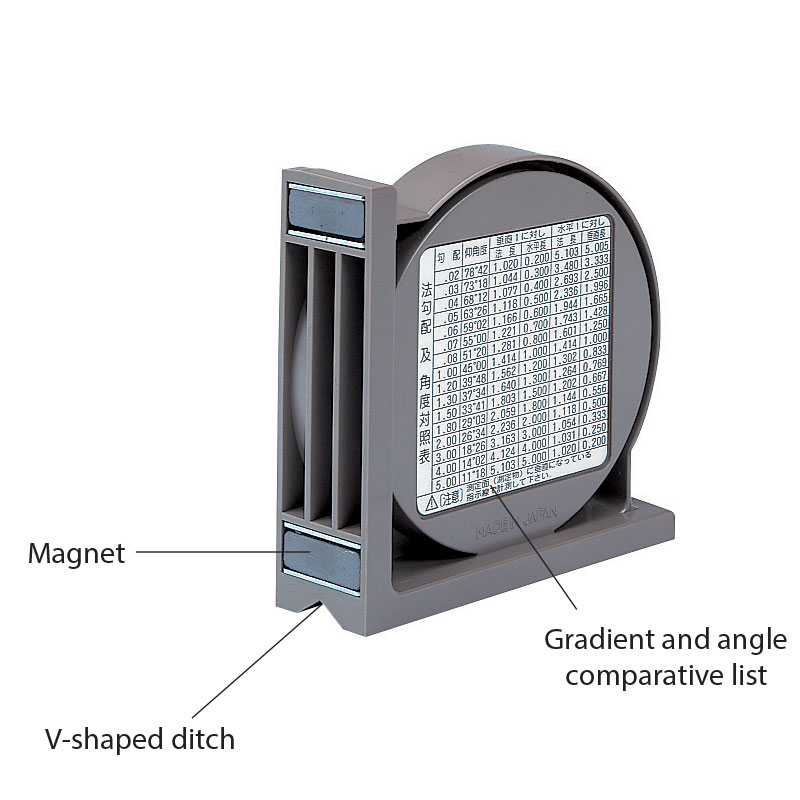

Measuring surface (2points)
- V-shaped ditch for using on pipes
- Strong magnet for using on steel frame

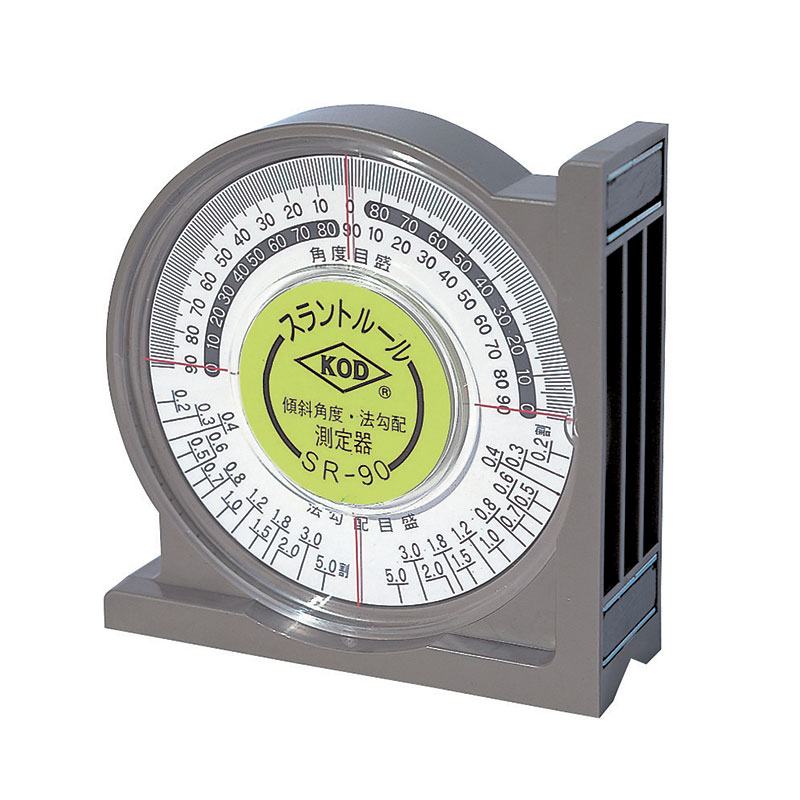

Inclination Angle Scale
- 1scale = 1°
90° to 0° to 90° (180°)
Gradient Scale
- 2, 3, 4, 5, 6 7 and 8 minutes
1.0%, 1.2%, 1.5%, 1.8%, 2.0%, 3.0%, 5.0%
*Please refer to gradient and angle comparative list on the product for further information. - Sensitivity ±0.5°
| Product No. | Size | Weight | Quantity per carton |
|---|---|---|---|
| SR-90 | 95x95x30mm | 110g | 5 |
