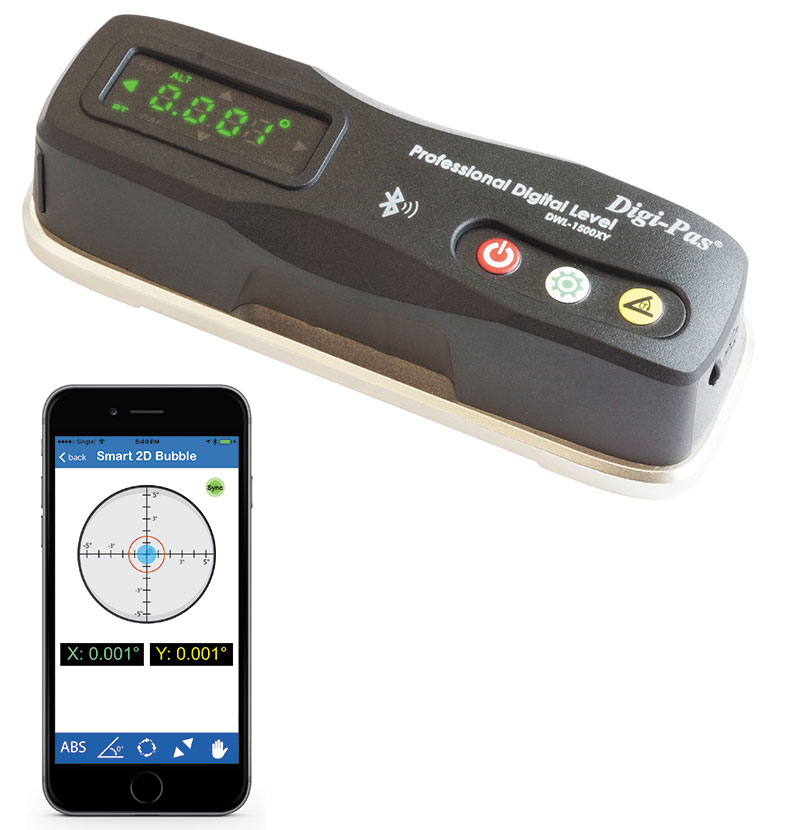

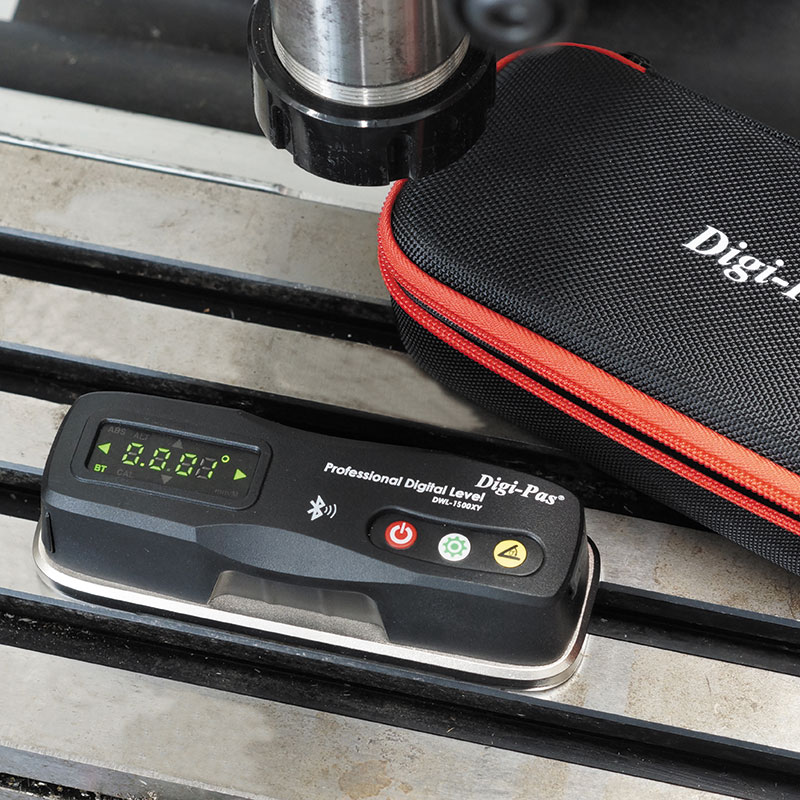

DWL-1500XY – 2-Axis Precision Digital Level

Resolution : 0.001°(0.020mm/m)


  • Dual axis model
  • Cut down the cost and improve work efficiency
  • Display both X & Y axis levelling measurements when you use mobile app via Bluetooth
  • Free mobile app installation for one device when you purchase the product (Serial code included)
  • It can be synchronized with multiple devices
  • Includes MEMS sensor


Measuring range From 0° to ±2.000°
Resolution 0.001°(0.020mm/m)
Accuracy From ±0° to ±0.500°→ Within ±0.002°
Other angles → Within ±0.004°
Display LED display
Battery AA batteriesx2 or USB charging
Material PC ABS/Aluminium
Bluetooth range Up to 15m
Operating temperature From −10℃ to +50℃
Size 50x38x150mm
Weight 500g
Self-calibration function
