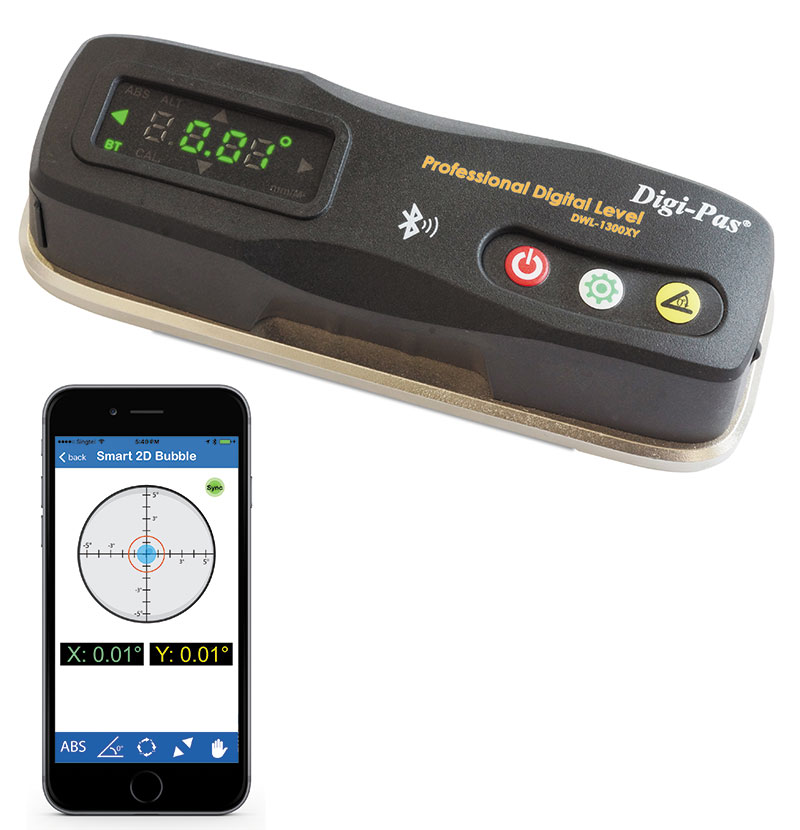

DWL-1300XY – 2-Axis Precision Digital Level






Resolution : 0.01°(0.18mm/m)

Features

  • Dual axis model
  • Cut down the cost and improve work efficiency

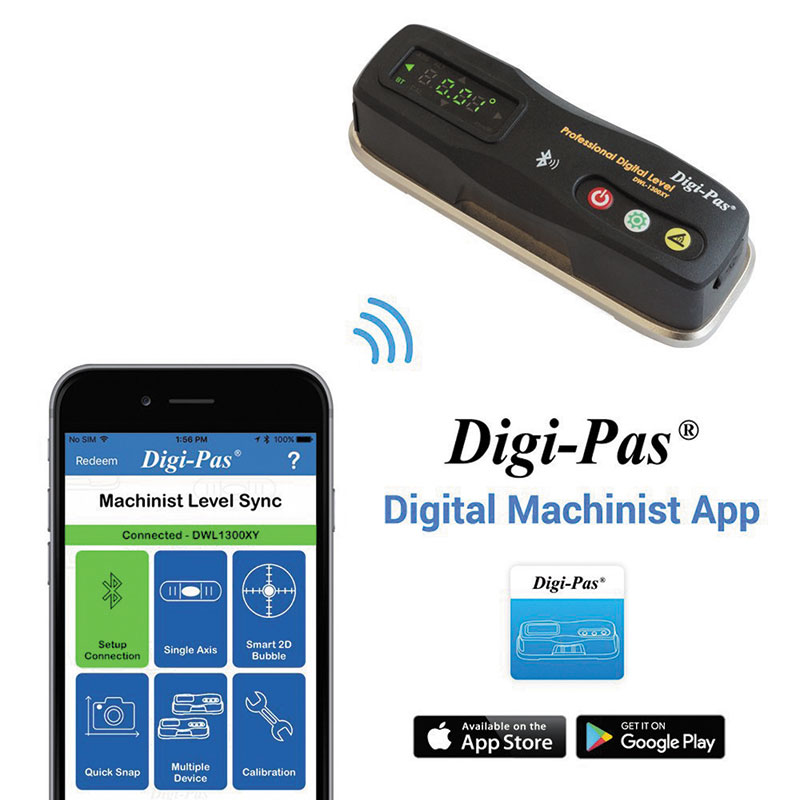

  • Display both X & Y axis levelling measurements when you use mobile app via Bluetooth
  • Free mobile app installation for one device when you purchase the product (Serial code included)

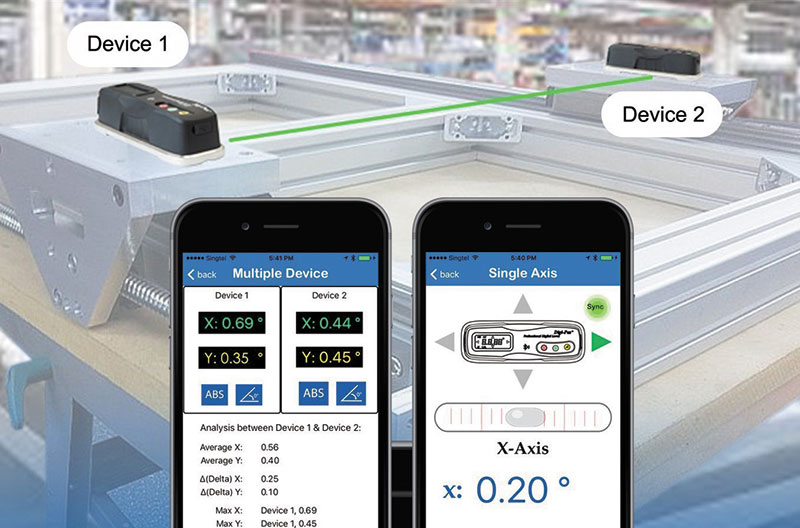

  • It can be synchronized with multiple devices
  • Includes MEMS sensor

■Specifications

Measuring range From 0°to ±5.00°
Resolution 0.01°(0.18mm/m)
Accuracy From ±0°to ±1.00°→ Within ±0.02°
Other angles → Within ±0.04°
Display LED display
Battery AA batteriesx2 or USB charging
Material PC ABS/Aluminium
Bluetooth range Up to 15m
Operating temperature From −10℃ to +50℃
Size 50x38x150mm
Weight 500g
Self-calibration function
