*380mm

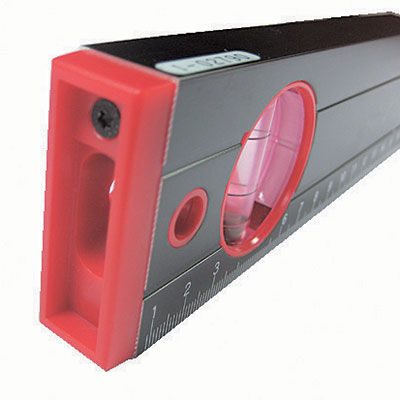

Vertical Vial
Can measure small spaces with side window.

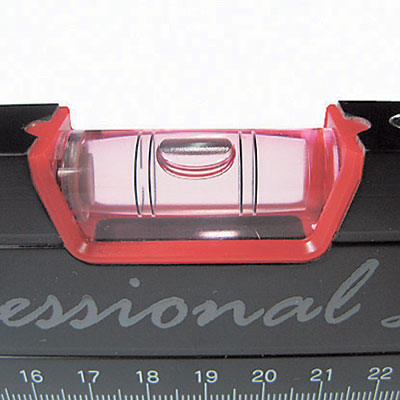

Horizontal Vial
Semi-circular shape for easy reading.
Adjustable with Torx screw (driver T10)

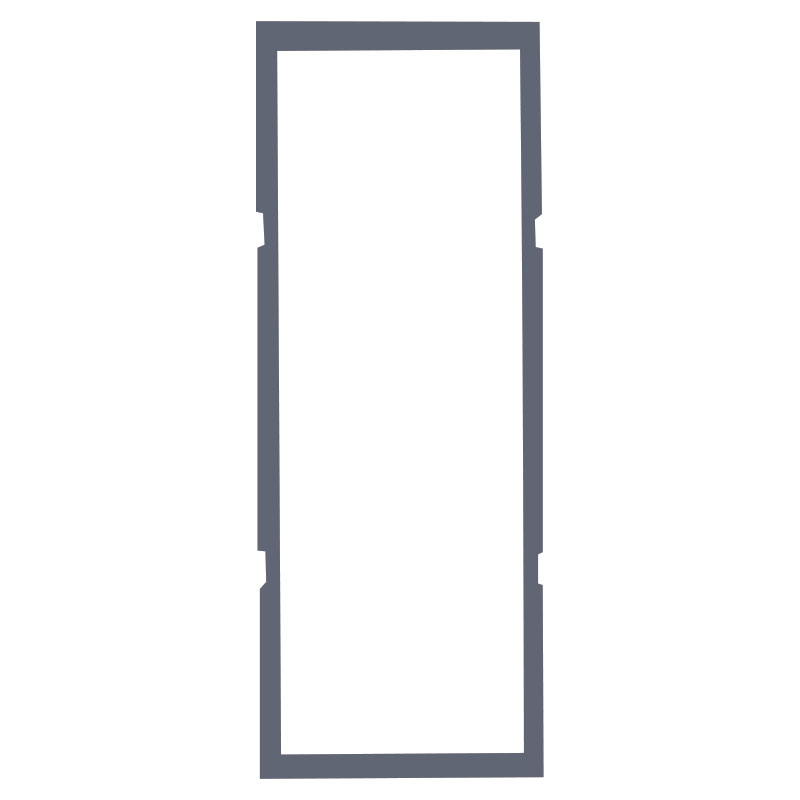

Frame Cross Section
19×50.5mm

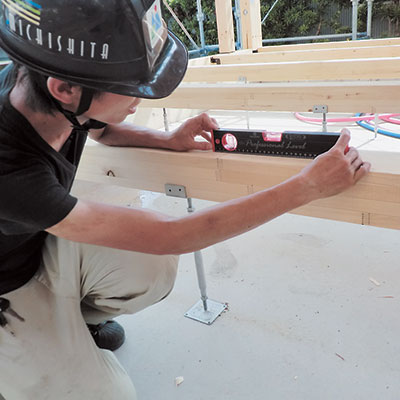

Examples of use
Ideal for construction site.

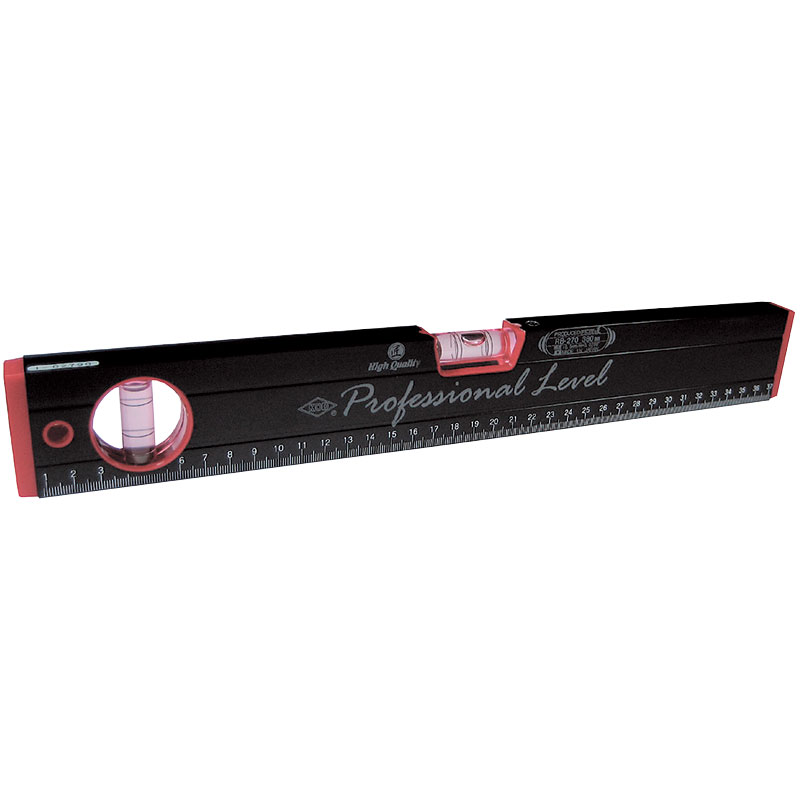

L-270 Aluminium level red and black version “RED EYE”
Frame
- Box type frame
- With scale
- Anodic oxidation coating surface
Vial
- Semi-circular type lens vial (horizontal vial)
- 4 scales
- With phosphorescence sheet
- Horizontal and vertical vial accuracy correction mechanism (exclude 100mm)
- Adjustable with Torx screw (Driver T10)in accuracy correction
- Shock absorbing end caps to preserve accuracy
- Top read vial for an accurate read from vertical angles
- Sensitivity 0.5mm/m = 0.0286°
- Accuracy ±1.5mm/m＝within ±0.0859°
| Product No. | Size | Weight | Quantity per carton |
|---|---|---|---|
| RB-270 | 150mm | 140g | 5 |
| 230mm | 192g | 5 | |
| 300mm | 243g | 5 | |
| 380mm | 296g | 5 | |
| 450mm | 348g | 5 | |
| 600mm | 453g | 5 | |
| 900mm | 661g | 1 |
Special Order Examples
The following option fees may be quoted separately.- 750mm, 1000mm and 2000mm can be made
- Non-standard size (ex. 200mm and 400mm etc.) can be made to order
- Laser printing option available.
