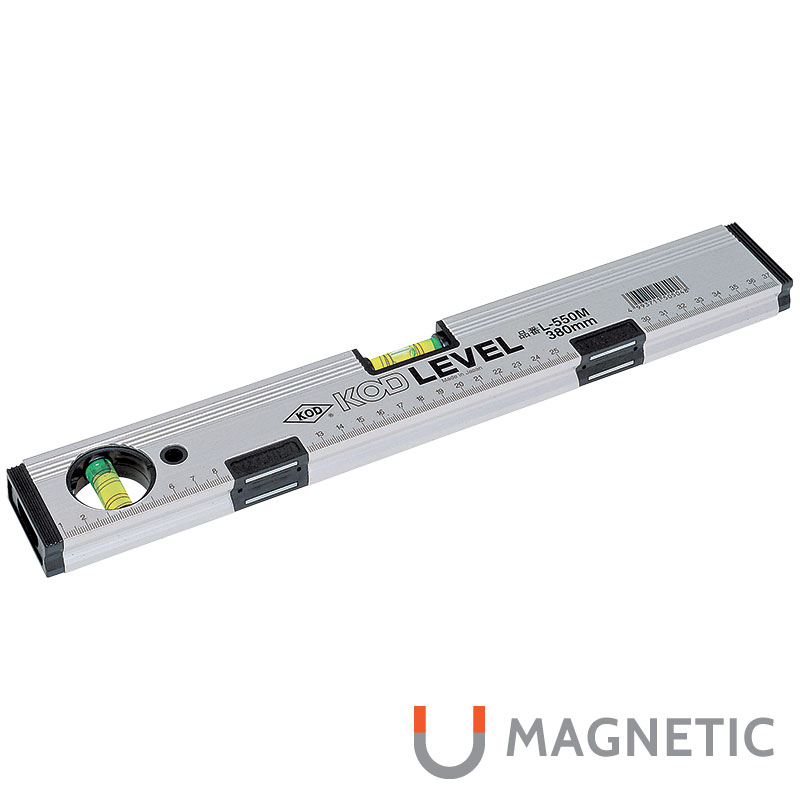

*380mm

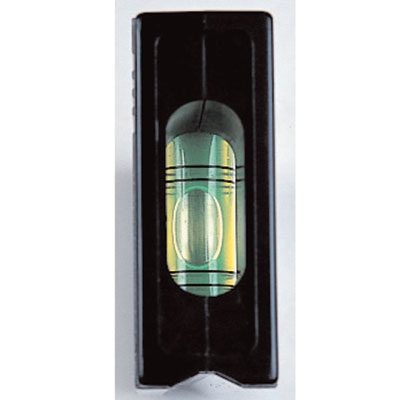

Vertical Vial
Can read from the side for vertical measurements.

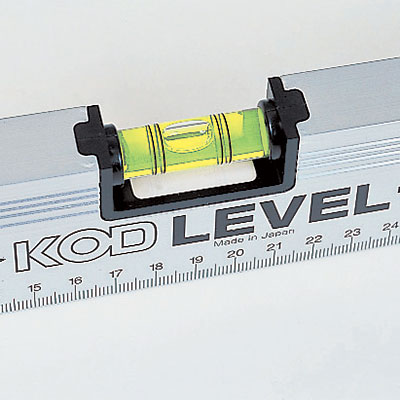

Horizontal Vial
Large vial for easy reading.

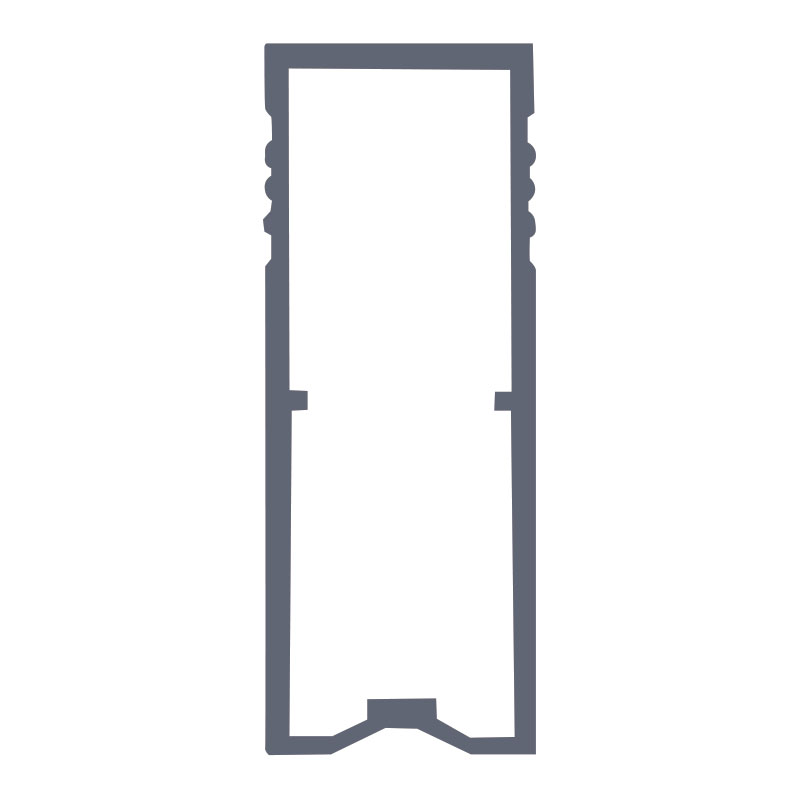

Frame Cross Section
19×50.5mm
V-shaped ditch on measuring surface
Large vial for easy reading.
Top read vial for an accurate read on vertical angles, convenient for scaffolding site.
Frame
- Box type frame
- With scale
- V-shaped ditch on measuring surface
- Anodic oxidation coating surface
Vial
- Tubular type resin vial (large vial)
- With white sheet
- 4 scales
- Top read vial for an accurate read on vertical angles
- Shock absorbing end caps to preserve accuracy
- Sensitivity 0.5mm/m = 0.0286°
- Accuracy ±1.5mm/m = within ±0.0859°
Magnet
- 100mm to 230mm : 1 magnet
300mm to 1200mm : 2 magnets - Adsorption power 0.22KN (with 2 magnets)
| Product No. | Size | Weight | Quantity per carton |
|---|---|---|---|
| L-550M | 100mm | 115g | 5 |
| 150mm | 170g | 5 | |
| 230mm | 222g | 5 | |
| 300mm | 303g | 5 | |
| 380mm | 356g | 5 | |
| 450mm | 408g | 5 | |
| 600mm | 513g | 5 | |
| 750mm | 617g | 1 | |
| 900mm | 721g | 1 | |
| 1200mm | 929g | 1 |
Special Order Examples
The following option fees may be quoted separately.- Additional vial and change position of horizontal vial (900mm, 1200mm)
