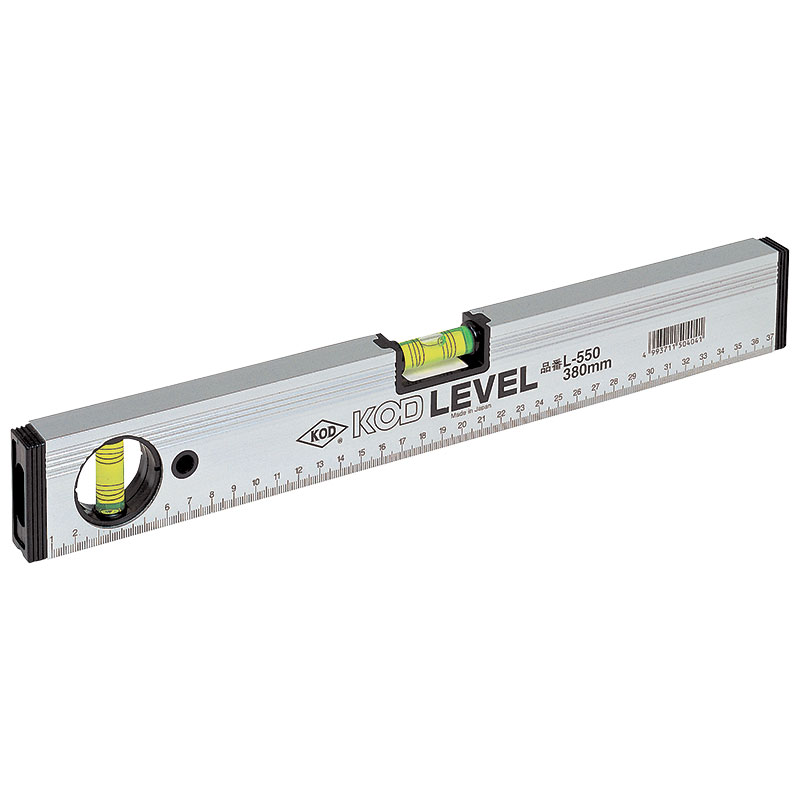

L-550 – Box Type Aluminium Level with V-shaped Ditch


*380mm

Vertical Vial


Can read from the side for vertical measurements.

Horizontal Vial


Large vial for easy reading.

Frame Cross Section


19×50.5mm
V-shaped ditch on measuring surface

Large vial for easy reading.
Top read vial for an accurate read on vertical angles, convenient for scaffolding site.

Frame

  • Box type frame
  • With scale
  • V-shaped ditch on measuring surface
  • Anodic oxidation coating surface

Vial

  • Tubular type resin vial (large vial)
  • With white sheet
  • 4 scales
  • Top read vial for an accurate read on vertical angles
  • Shock absorbing end caps to preserve accuracy
  • Sensitivity 0.5mm/m = 0.0286°
  • Accuracy ±1.5mm/m = within ±0.0859°
Product No.SizeWeightQuantity per carton
L-550100mm85g5
150mm140g5
230mm192g5
300mm243g5
380mm296g5
450mm348g5
600mm453g5
750mm557g1
900mm661g1
1200mm869g1

Special Order Examples

The following option fees may be quoted separately.
  • Additional vial and change position of horizontal vial (900mm, 1200mm)
