*380mm
Vertical Vial
Can measure small spaces with side window.
Horizontal Vial
Semi-circular shape for easy
reading.
Adjustable with torx driver T10
Frame Cross Section
19×50.5mm

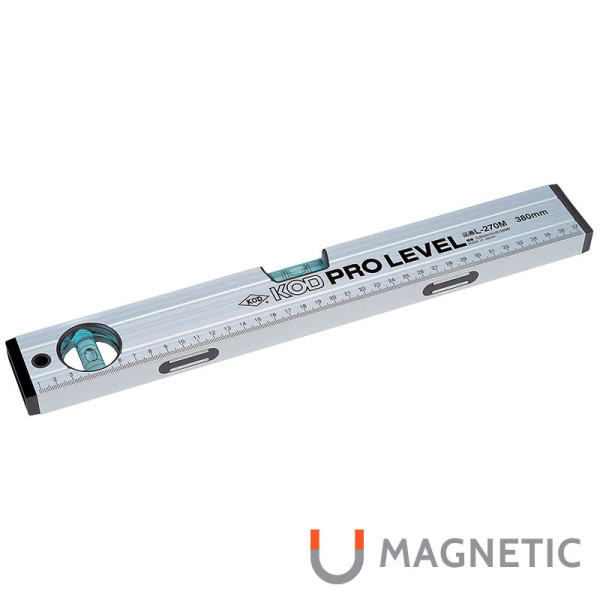

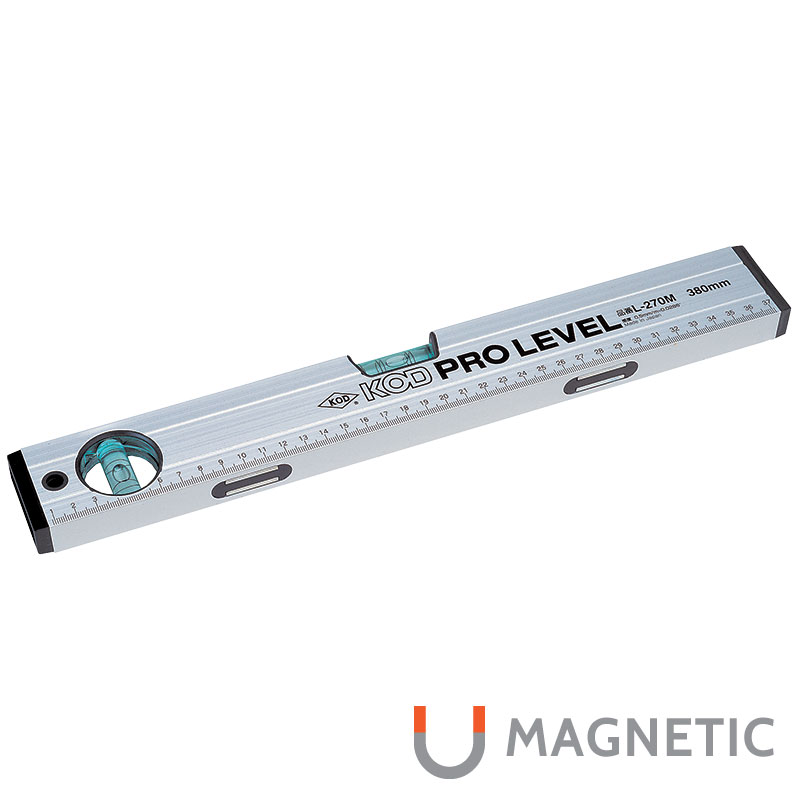

Professional level with a semi-circular vial which has a magnifying lens effect.
Frame
- Box type frame
- With scale
- Anodic oxidation coating surface
Vial
- Semi-circular type lens vial (horizontal vial)
*100mm : Tubular resin vial - 4 scales
- With phosphorescence sheet
- Horizontal and vertical vial accuracy correction mechanism (exclude 100mm)
- Adjustable with Torx screw (Driver T10) in accuracy correction
- Shock absorbing end caps to preserve accuracy
- Top read vial for an accurate read on vertical angles
- 2 vertical vial (over 1000mm length)
- Sensitivity 0.5mm/m = 0.0286°
- Accuracy ±1.5mm/m = within ±0.0859°
Magnet
- 100mm to 230mm : 1 magnet
300mm to 1200mm : 2 magnets
1500mm to 2000mm : 3 magnets - Adsorption power 0.22KN (with 2 magnets)
| Product No. | Size | Weight | Quantity per carton |
|---|---|---|---|
| L-270M | 100mm | 115g | 5 |
| 150mm | 170g | 5 | |
| 230mm | 222g | 5 | |
| 300mm | 303g | 5 | |
| 380mm | 356g | 5 | |
| 450mm | 408g | 5 | |
| 600mm | 513g | 5 | |
| 750mm | 617g | 1 | |
| 900mm | 721g | 1 | |
| 1000mm | 788g | 1 | |
| 1200mm | 959g | 1 | |
| 1500mm | 1168g | 1 | |
| 1800mm | 1376g | 1 | |
| 2000mm | 1516g | 1 |
Special Order Examples
The following option fees may be quoted separately.- Non-standard size (ex. 200mm) can be made to order
- Vertical vial can be attached to the right edge (1500mm, 1800mm, 2000mm)
