*300mm
Vertical Vial
Horizontal Vial
45° Vial
Frame Cross Section
26×56mm
V-shaped ditch on measuring surface

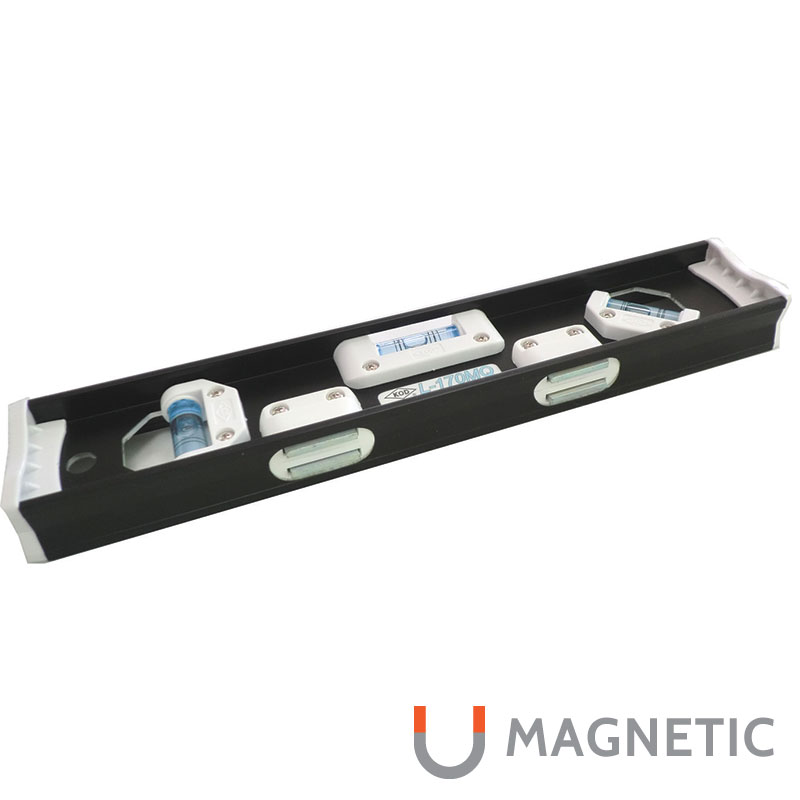

Ultimate version of I-shaped aluminium level
Frame
- I-shaped frame
- V-shaped ditch on measuring surface
- Anodic oxidation coating surface
Vial
- Tubular type resin vial
- 4 scales
- Sensitivity 0.5mm/m = 0.0286°
- Accuracy ±1.5mm/m = within ±0.0859°
Magnet
- Adsorption power 0.22KN (with 2 magnets)
- 150mm to 230mm : 1 magnet
300mm to 600mm : 2 magnets
| Product No. | Size | Weight | Quantity per carton |
|---|---|---|---|
| L-170MQ | 150mm | 185g | 10 |
| 230mm | 240g | 10 | |
| 300mm | 295g | 10 | |
| 380mm | 350g | 10 | |
| 450mm | 405g | 10 | |
| 600mm | 515g | 10 |
