*Rt-25

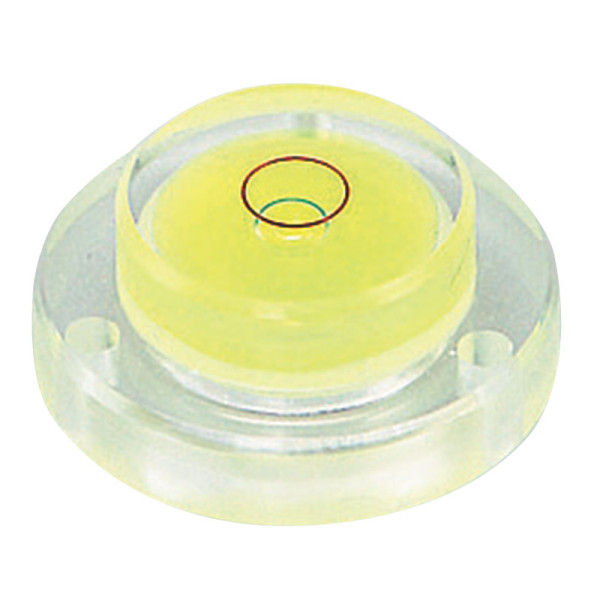

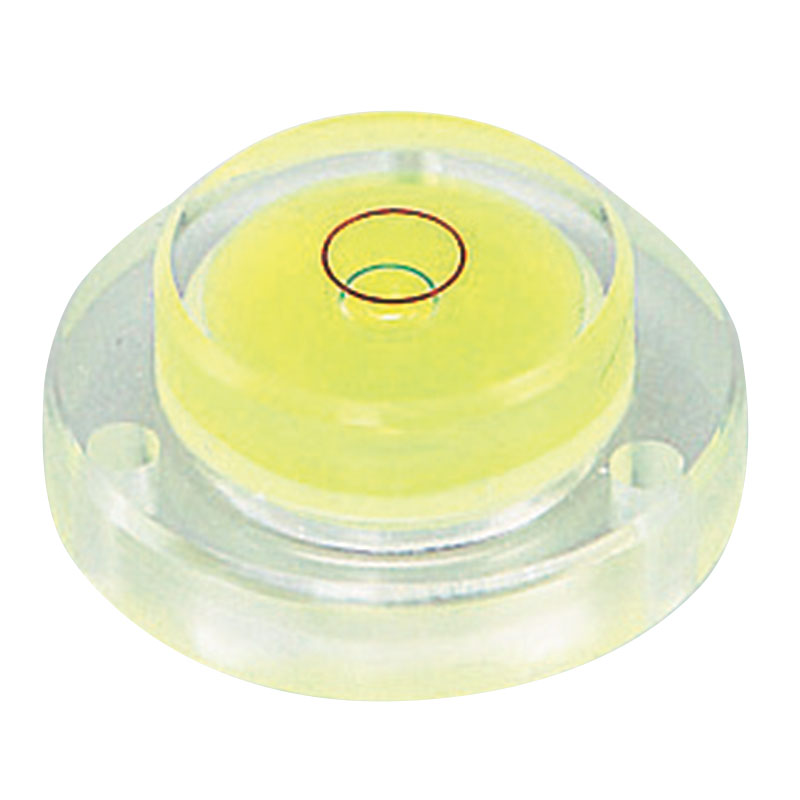

Levels with mounting holes are ideal for attaching to machinery.
Sensitivity 91’/2mm * Rt−80 Sensitivity 17’/2mm
| Product No. | Size | Vial Diameter | Scale Diameter | Hole Diameter | Weight | Quantity per carton |
|---|---|---|---|---|---|---|
| Rt-12 | φ12x7mm | 5mm | 2.5mm | 1mm | 0.7g | 10 |
| Rt-15 | φ15x8mm | 7mm | 3.5mm | 1.5mm | 1.2g | 10 |
| Rt-20 | φ20x9mm | 9mm | 4mm | 2.3mm | 2g | 10 |
| Rt-25 | φ25x10mm | 14mm | 5mm | 2.5mm | 5g | 10 |
| Rt-30 | φ30x10mm | 16mm | 6.5mm | 2.5mm | 6g | 10 |
| Rt-35 | φ35x10mm | 18mm | 7mm | 2.5mm | 8g | 10 |
| Rt-80 | φ80x14mm | 38mm | 12mm | 4mm | 60g | 1 |
Special Order Examples
The following option fees may be quoted separately.- Change mounting hole diameter
- Change color of red scale line
- Change body size
- Change liquid color to transparent
