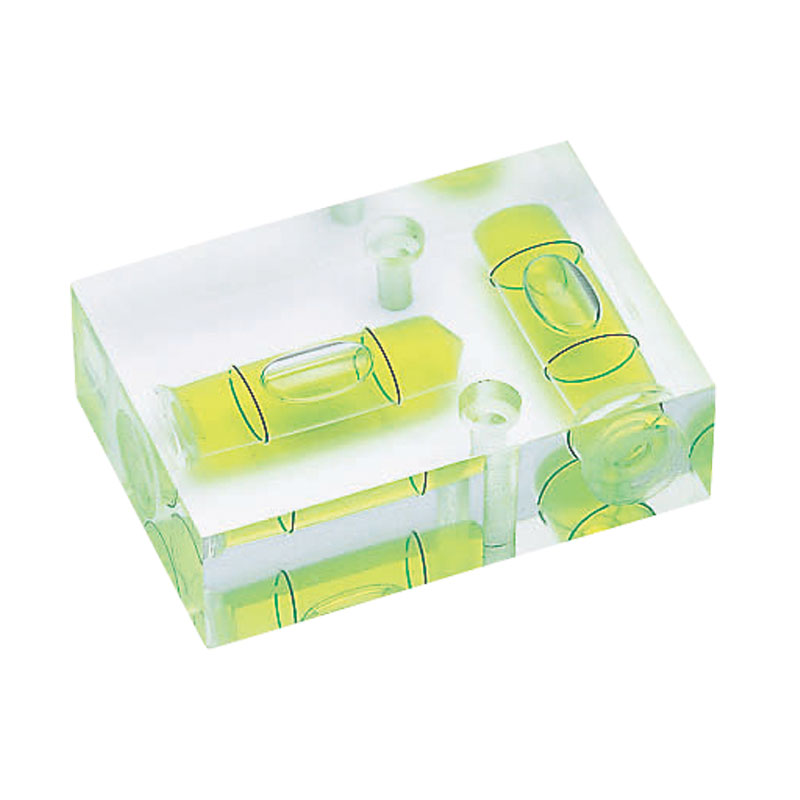

*PTh-50
Sensitivity 0.5mm/m = 0.0286°
*PTh-30 : Sensitivity 1.3mm/m = 0.0764°
| Product No. | Size | Vial Size | Scale Width | Hole Pitch | Hole Diameter | Weight | Quantity per carton |
|---|---|---|---|---|---|---|---|
| PTh-30 | 20x30x10mm | φ6x13mm | 6mm | 13mm | 2.7mm | 7g | 1 |
| PTh-40 | 25x40x13mm | φ8x18mm | 8mm | 17mm | 2.7mm | 14g | 1 |
| PTh-50 | 35x50x15mm | φ8x25mm | 13mm | 23mm | 3.2mm | 29g | 1 |
| PTh-70 | 15x70x15mm | φ8x25mm φ8x18mm | 13mm 18mm | 17mm | 2.7mm | 29g | 1 |
Special Order Examples
The following option fees may be quoted separately.- Change liquid color to transparent
- Chamfering
- Change mounting hole diameter
