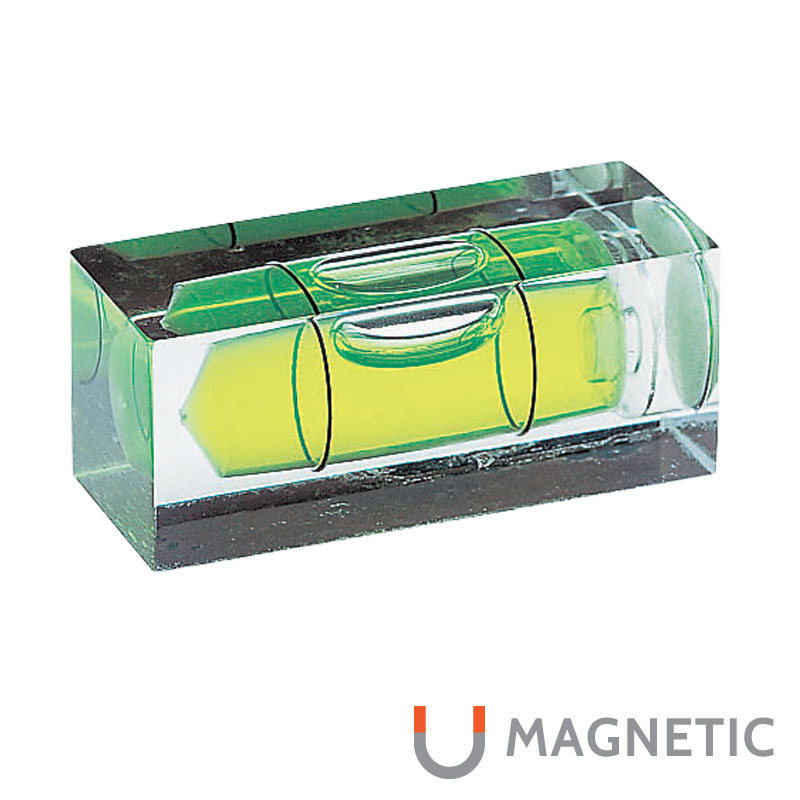

*PM-15-36

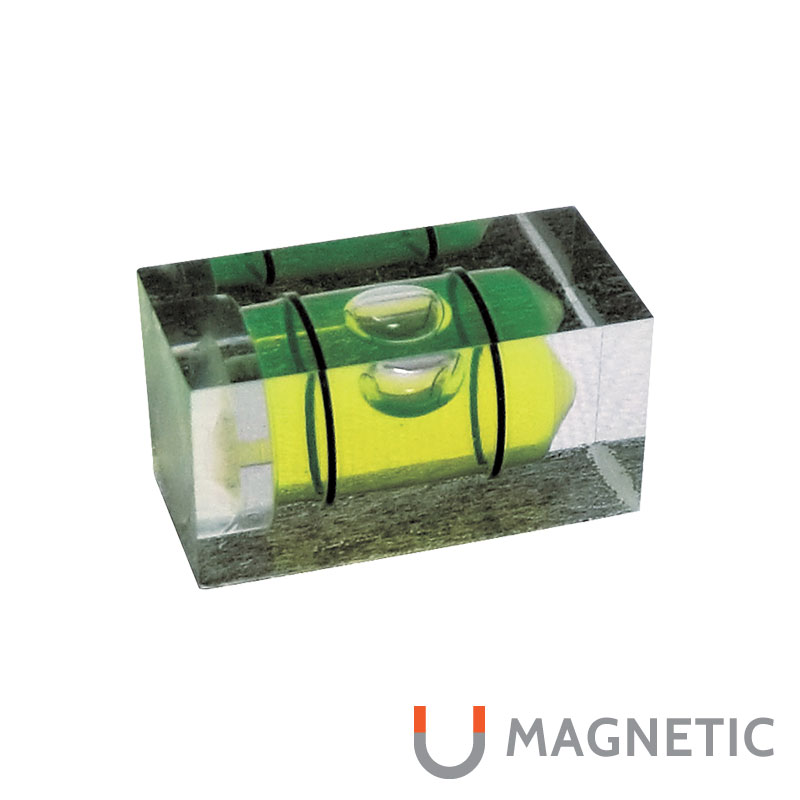

*PM-8-16

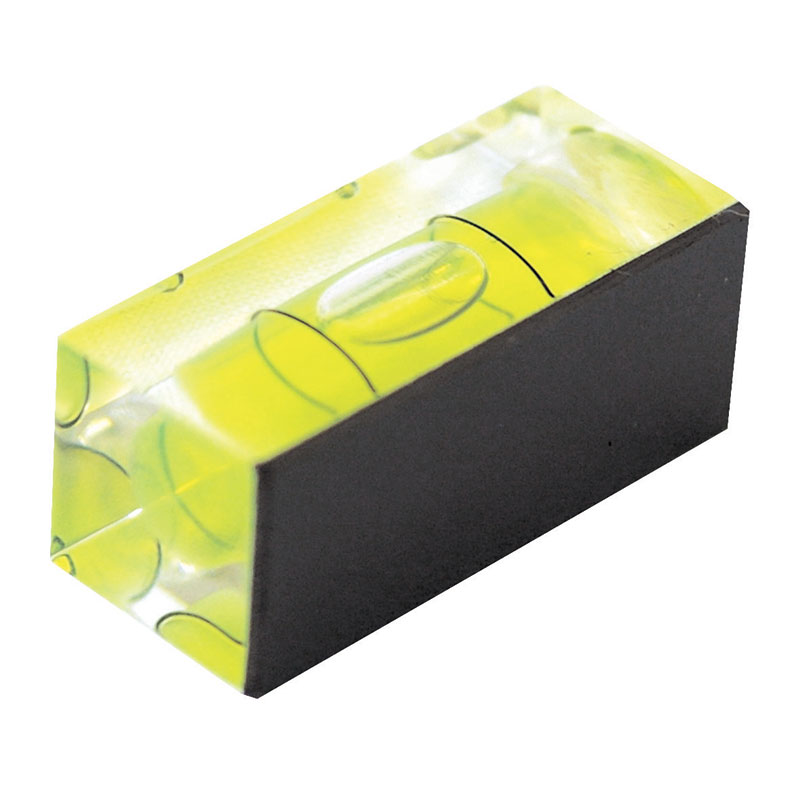

Magnet on measuring surface
Sensitivity 0.5mm/m = 0.0286°
*PM−8−16,PM−10−20 : Sensitivity 1.3mm/m = 0.0764°
| Product No. | Size | Vial Size | Scale Width | Weight | Quantity per carton |
|---|---|---|---|---|---|
| PM-8-16 | 8x9x16mm | φ5x10mm | 6mm | 2g | 1 |
| PM-10-20 | 10x11x20mm | φ6x12mm | 6mm | 3g | 1 |
| PM-15-36 | 15x16x36mm | φ8x25mm | 13mm | 11g | 10 |
| PM-15-45 | 15x16x45mm | φ8x25mm | 13mm | 13g | 10 |
| PM-15-70 | 15x16x70mm | φ8x25mm | 13mm | 21g | 10 |
| PM-15-100 | 15x16x100mm | φ8x25mm | 13mm | 30g | 10 |
Special Order Examples
The following option fees may be quoted separately.- Change liquid color to transparent
- Can be laser printed on the body
- Chamfering
